Best For: Enduro
Reign 2
£2,099 Original price: £3,499

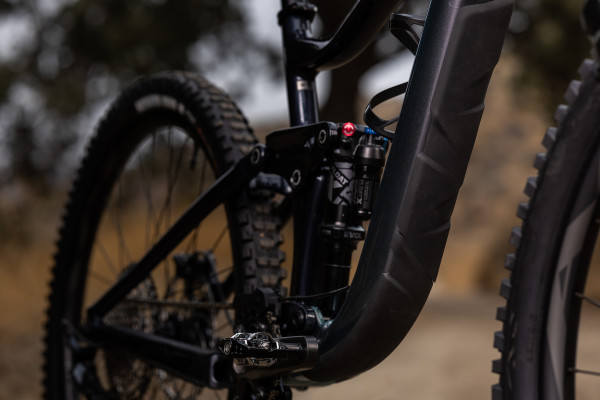

A new Maestro rear suspension system with longer travel (160mm) was developed and tested under the extreme conditions of Enduro World Series races. The trunnion mount shock has a longer stroke (62.5mm compared to 60mm on the previous generation). And the Advanced Forged Composite upper rocker arm adds stiffness and lowers overall weight.
New flip chip technology lets you switch between three settings depending on the terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium) to fine-tune handling for trail conditions, riding style and rear-wheel size.
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The larger 29-inch option improves stability and roll-over capabilities, while the 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
The geometry of the ALUXX SL aluminum frameset has been updated to accommodate 29-inch wheels, and you now have the option to run a “mullet” setup with a 27.5 rear wheel. This translates into a short chainstay length, a shorter reach, and geometry that can be adjusted via a three-position flip chip. An updated Maestro suspension system delivers 160mm of rear wheel travel mated to a 170mm fork. And new integrated down tube storage provides convenient carrying capacity for trail riding essentials.
This state-of-the-art aluminum material is made predominantly from 6011 alloy and delivers best-in-class strength-to-weight ratios. The frameset features unique welding technologies for a high-performance ride quality.
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
A state-of-the-art high-pressure molding process is used to produce the carbon fiber upper rocker link that’s lighter, stiffer and stronger than aluminum.
Frame geometry can be adjusted between three settings to match riding style and terrain. You can select a 63.5, 63.9 or 64.2-degree head angle and corresponding 78.3, 78.7 or 79-degree seat tube angle, resulting in a 35, 30 or 25mm bottom bracket drop (size medium).
Riders can choose either a 29- or 27.5-inch rear wheel, paired with a 29-inch front wheel. The stock 29-inch rear wheel optimizes stability and roll-over capabilities, while a 27.5 option delivers a more agile, snappier feel. It’s a quick and easy change to adjust the bike’s handling and feel.
Wider hub spacing (110mm front / 148mm rear) results in stiffer wheels for added control plus more tire clearance and an improved chainline for optimal drivetrain performance.
New shock mount produces a lower leverage ratio for increased pedaling and braking efficiency, plus a lower center of gravity and shorter chainstays for improved handling, climbing and agility.

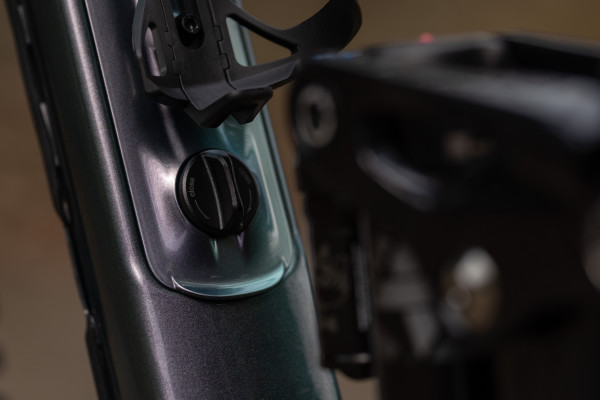

All new integrated down tube storage provides convenient carrying capacity for on-trail essentials.
A massively oversized bottom bracket area features a fully integrated, 92mm wide design. Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.
Giant’s proven oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/2” lower and 1 1/8” upper) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Integrated Tubeless WheelSystem and tires delivers improved efficiency, comfort and control in the most user-friendly and reliable system.
Four strategically positioned pivot points and two linkages all work together to create a single floating pivot for the most active, efficient and independent suspension system on the trail.
Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Fewer flat tires. Greater traction. Less rolling resistance and a smoother, faster ride. Giant’s Tubeless System makes it easier than ever to experience all these benefits.
This all-new technology allows riders to quickly adjust the geometry and choose a rear wheel size (29-inch or 27.5-inch) for their riding style and terrain. It’s available on select Maestro-equipped mountain bikes. The adjustment affects head tube and seat tube angles, bottom bracket height, and rear-wheel size using eccentric flip chip hardware located on the upper rocker arm of the rear suspension.
Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
180 cm5’11” 188 cm6’2” 196 cm6’5”
| M | L | XL | ||
|---|---|---|---|---|
| LOW | MID | HIGH | LOW | MID | HIGH | LOW | MID | HIGH | ||
| A | Seat Tube Length (mm) (inch) | 42516.7 | 45017.7 | 47518.7 |
| B | Seat Tube Angle (degrees) | 78.3° | 78.7° | 79.0° | 77.3° | 77.7° | 78.0° | 77.3° | 77.7° | 78.0° |
| C | Top Tube Length (mm) (inch) | 58723.1 | 58623.1 | 58523 | 62024.4 | 62024.4 | 61924.4 | 65225.7 | 65225.7 | 65125.6 |
| D | Head Tube Length (mm) (inch) | 1054.1 | 1154.5 | 1204.7 |
| E | Head Tube Angle (degrees) | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° | 63.5° | 63.9° | 64.2° |
| F | Fork Rake (mm) (inch) | 441.7 | 441.7 | 441.7 |
| G | Trail (mm) (inch) | 1405.5 | 1385.4 | 1355.3 | 1405.5 | 1385.4 | 1355.3 | 1405.5 | 1385.4 | 1355.3 |
| H | Wheelbase (mm) (inch) | 124649.1 | 124549 | 124449 | 127150 | 127050 | 126950 | 130451.3 | 130351.3 | 130251.3 |
| I | Chain Stay Length (mm) (inch) | 44517.5 | 44317.4 | 44217.4 | 44517.5 | 44317.4 | 44217.4 | 44517.5 | 44317.4 | 44217.4 |
| J | Bottom Bracket Drop (mm) (inch) | 351.4 | 301.2 | 251 | 351.4 | 301.2 | 251 | 351.4 | 301.2 | 251 |
| K | Stack (mm) (inch) | 63224.9 | 62924.8 | 62624.6 | 64125.2 | 63825.1 | 63525 | 64525.4 | 64225.3 | 63925.2 |
| L | Reach (mm) (inch) | 45618 | 46018.1 | 46418.3 | 47618.7 | 48018.9 | 48419.1 | 50619.9 | 51020.1 | 51420.2 |
| M | Stand Over Height (mm) (inch) | 74329.3 | 74729.4 | 75229.6 | 75629.8 | 76029.9 | 76530.1 | 77130.4 | 77730.6 | 78230.8 |
| N | Handlebar Width (mm) (inch) | 80031.5 | 80031.5 | |
| O | Stem Length (mm) (inch) | 401.6 | 401.6 | 401.6 |
| P | Crank Length (mm) (inch) | 1706.7 | 1706.7 | 1706.7 |
| Q | Wheel Size | 29" | 29" | 29" |
